Stamping / Stacking Robot SDCX RMD-300/200/160/120/35/08/110/20/50

Kev taw qhia luv luv ntawm cov khoom

Stamping neeg hlau yog dav siv rau stacking, destacking, tsheb thauj mus los thiab lwm yam hauj lwm nyob rau hauv lub teb ntawm packing, dej haus, tshuaj lom neeg kev lag luam, zaub mov, thiab lwm yam., muab cov neeg siv nrog tag nrho cov txheej txheem ceev, nyab xeeb, saj zawg zog, raug thiab positioning kev daws teeb meem.

Tiv tauj peb

Product Detail

Khoom cim npe

Technical Parameters

Qauv No.	Degree ntawm kev ywj pheej	Tsav tsheb hom	Thauj khoom (KG)	Rov ua qhov tseeb qhov tseeb (mm)	Ntau qhov kev txav (°)				Qhov ceev tshaj plaws (° / s)				Tso cai load inertia ntawm dab teg (kg·m²)	Circular beat (lub voj voog / teev)	Radius ntawm kev txav (mm)	Qhov hnyav hauv zos (kg)
Qauv No.	Degree ntawm kev ywj pheej	Tsav tsheb hom	Thauj khoom (KG)	Rov ua qhov tseeb qhov tseeb (mm)	J1	J2	J3	J4	J1	J2	J3	J4	Tso cai load inertia ntawm dab teg (kg·m²)	Circular beat (lub voj voog / teev)	Radius ntawm kev txav (mm)	Qhov hnyav hauv zos (kg)

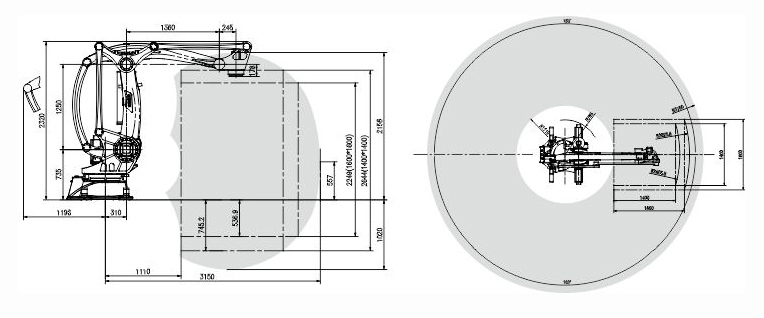

SDCX-RMD300	4	AC servo tsav	300	± 0.5 hli	± 180	± +100-44	± +121-15	± 360	85	90	100	190	134	1000^③	3 150	1500
SDCX-RMD200	4	AC servo tsav	200	± 0.3	± 180	± +100-44	± +121-15	± 360	105	107	114	242	78	1300^③	3 150	1500
SDCX-RMD160	4	AC servo tsav	160	± 0.3	± 180	± +100-44	± +121-15	± 360	123	123	128	300	78	1500^③	3 150	1500
SDCX-RMD120	4	AC servo tsav	120	± 0.3	± 180	± +100-44	± +121-15	± 360	128	126	135	300	78	1560^③	3 150	1500

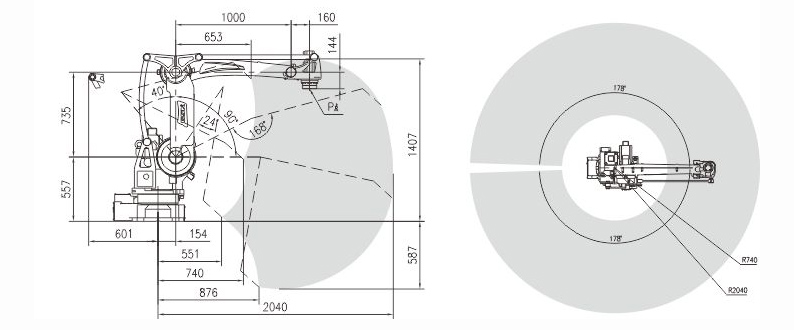

SDCX-RMD50	4	AC servo tsav	50	± 0.2	± 178	± +90-40	± +65-78	± 360	171	171	171	222	4.5	1700^②	2040	660

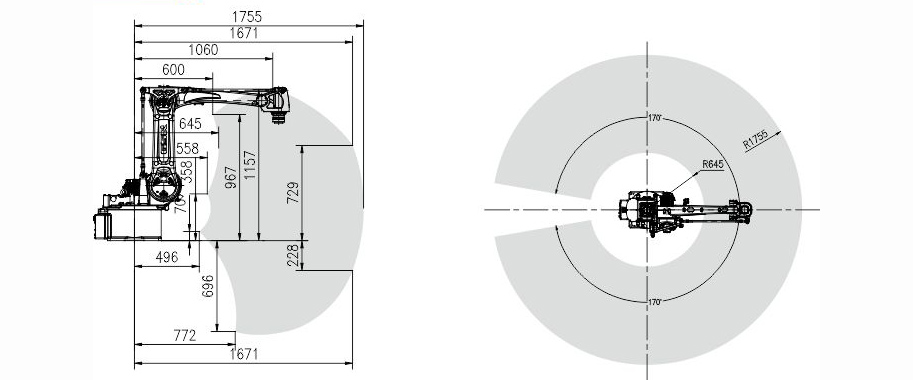

SDCX-RMD20	4	AC servo tsav	20	± 0.08 hli	± 1170	± +115-25	± +70-90	± 360	170	170	185	330	0.51 ib	1780^①	1720	256

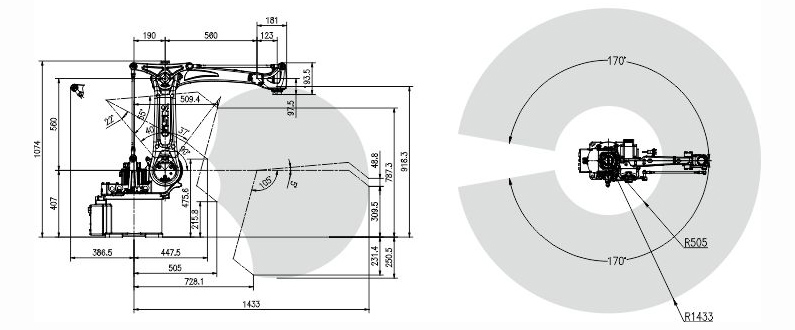

SDCX-RMD08	4	AC servo tsav	8	± 0.08 hli	± 170	± +90-40	± +68-90	± 360	251	195	195	367.5 ib	0.25	1800^①	1433 ib	180

Lus ceeb toom:

① Cov kev xeem khiav yog 150mm siab thiab 1000mm dav, thiab lub sij hawm mus ncig tiag tiag cuam tshuam los ntawm kev ua haujlwm tiag tiag;

② Cov kev xeem khiav yog 200mm siab thiab 1000mm dav, thiab lub sij hawm lub voj voog tiag tiag cuam tshuam los ntawm kev ua haujlwm tiag tiag;

③ Kev ntsuas ntsuas yog 400mm siab thiab 2000mm dav, thiab lub sijhawm ua haujlwm tiag tiag cuam tshuam los ntawm kev ua haujlwm tiag tiag;

Tsis txhob sib cuag nrog cov hluav taws kub, tawg thiab corrosive gases thiab kua;Ua kom tsis txhob txaws nrog dej, roj thiab hmoov av;Khaws kom deb ntawm qhov chaw hluav taws xob (plasma)
