Tsheb thauj neeg hlau SDCXRB-03A1 / RB06-900 / RB08 / RB08A3-1490 / RB08A3-1700 / RB08A3-1840 / RB10 / RB20 / RB50 / RB130 / RB165 / RB210d Feature duab

Tsheb thauj neeg mob SDCXRB-03A1 / RB06-900 / RB08 / RB08A3-1490 / RB08A3-1700 / RB08A3-1840 / RB10 / RB20 / RB50 / RB130 / RB165 / RB210

Kev taw qhia luv luv ntawm cov khoom

Kev thauj mus los muaj cov neeg hlau feem ntau yog siv hauv kev sib tsoo, polishing, thauj khoom thiab blanking mus rau / los ntawm cov cuab yeej siv tshuab, tsis siv neeg tsheb thauj mus los rau stamping tsis siv neeg cov kab ntau lawm, thiab lwm yam.Nws qhov zoo dua yog tias nws tuaj yeem ua tiav txhua yam kev xav tau los ntawm kev ua haujlwm.Nws muab cov txiaj ntsig zoo ntawm tib neeg thiab tshuab hauv nws cov qauv thiab kev ua tau zoo, tshwj xeeb tshaj yog embodying kev txawj ntse thiab kev yoog raws.

Tiv tauj peb

Product Detail

Khoom cim npe

Technical Parameters

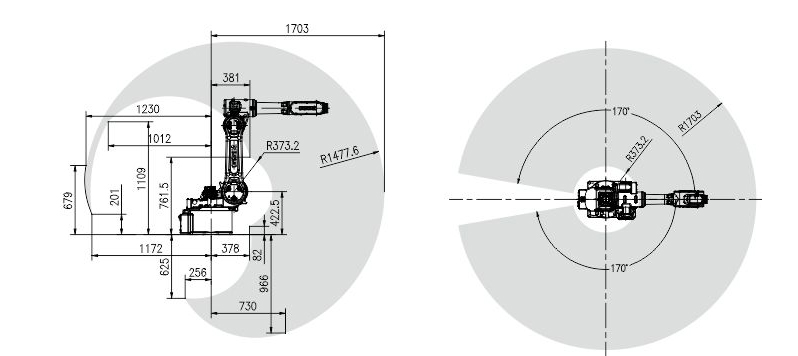

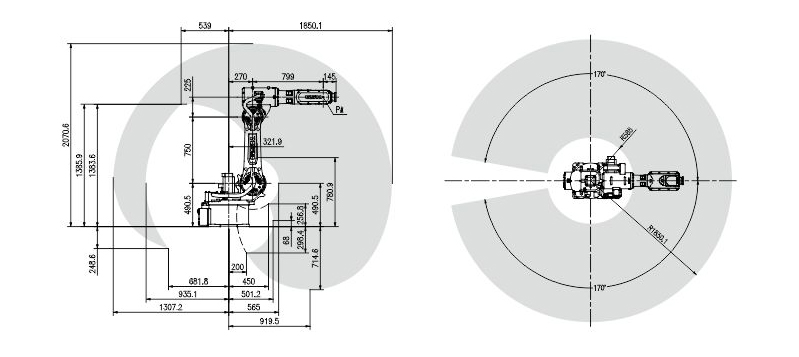

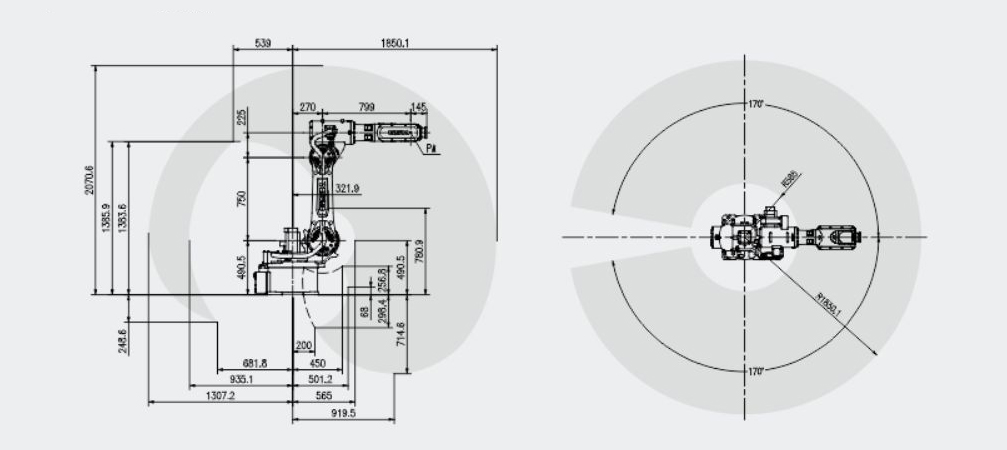

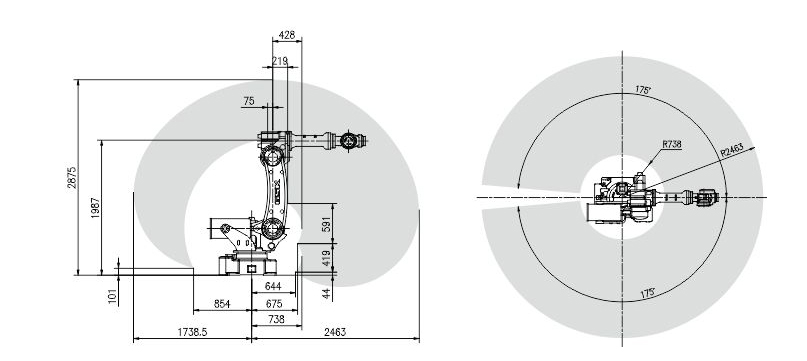

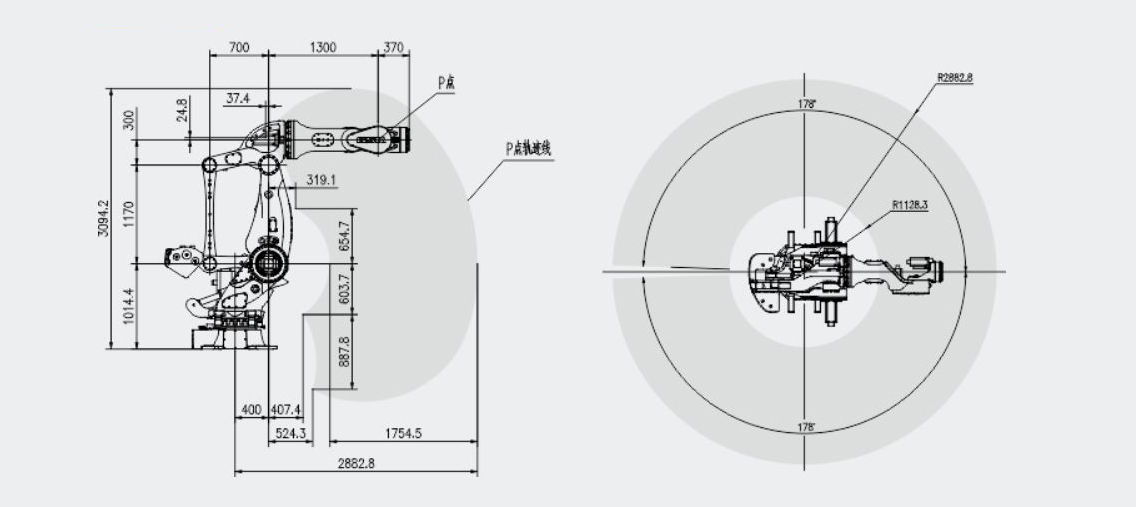

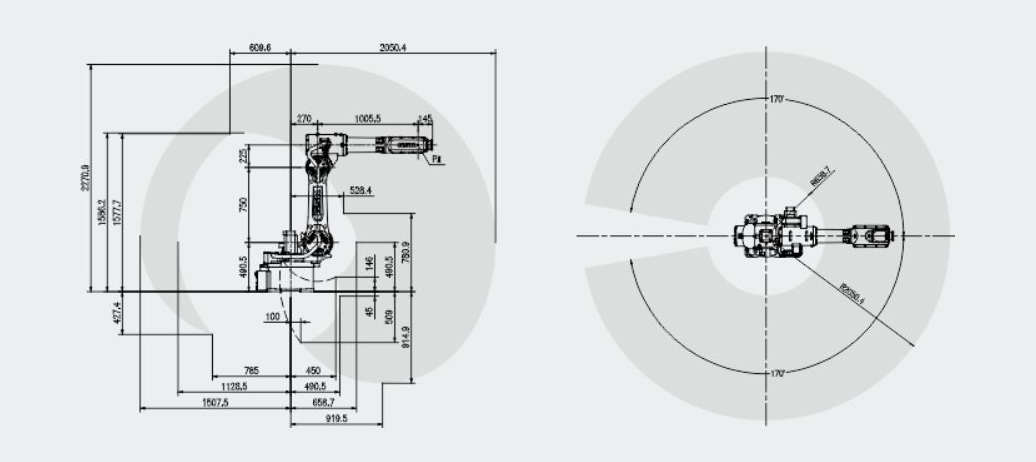

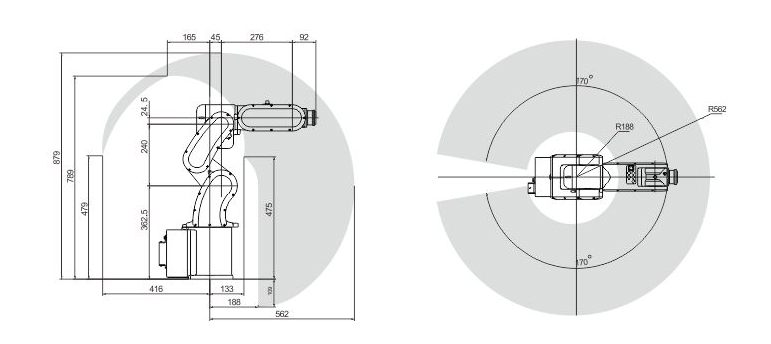

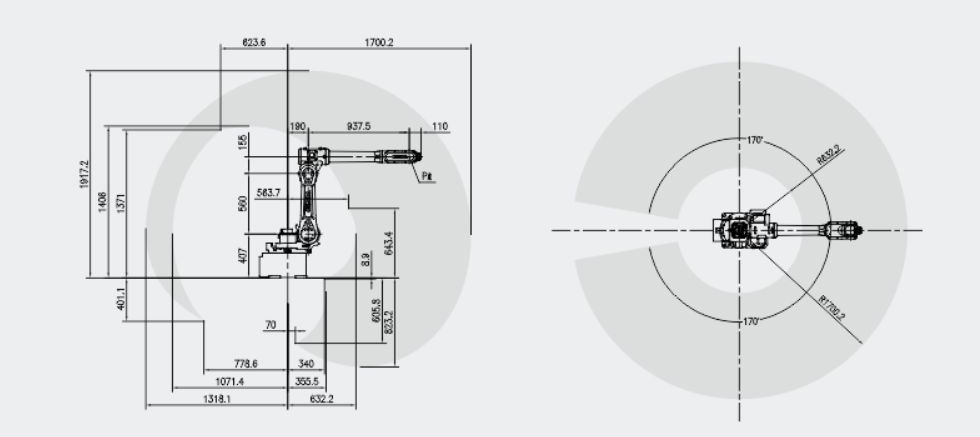

Qauv No.		Degree ntawm kev ywj pheej	Tsav tsheb hom	Them nyiaj (kg)	Rov ua dua qhov tseeb (mm)	Ntau qhov kev txav (°)						Max ceev (°/s)						Qhov siab tshaj plaws torque (N. m)			Radius ntawm kev txav (mm)	Qhov hnyav (kg)
Qauv No.		Degree ntawm kev ywj pheej	Tsav tsheb hom	Them nyiaj (kg)	Rov ua dua qhov tseeb (mm)	J1	J2	J3	J4	J5	J6	J1	J2	J3	J4	J5	J6	J4	J5	J6	Radius ntawm kev txav (mm)	Qhov hnyav (kg)
SDCX-RB03A1		6	AC servo tsav	3	± 0.02 hli	± 150	+136–51	+64–131	±150	±120	±360	375	375	419 ib	600	600	750	9.3	9.3	4.5	562 ib	36
SDCX-RB06-900		6	AC servo tsav	6	± 0.03 hli	± 170	+135-100	+155-110	± 170	± 120	± 360	337.5 ib	270	375	300	375	468 ib	12	10	6	900	60
SDCX-RB08		6	AC servo tsav	8	± 0.05 hli	± 170	+120-85	+75-155	± 180	± 135	± 360	154	154	154	420	252	620	14	12	7	1389 ib	180

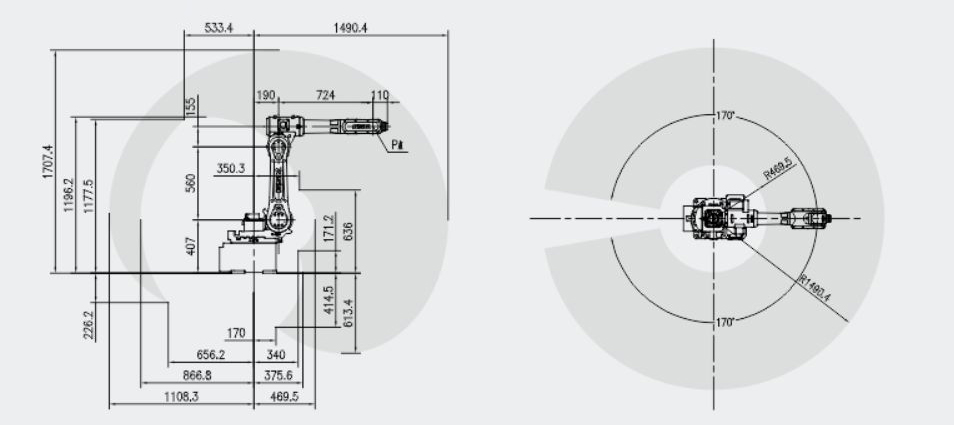

SDCX-RB08A3-1490		6	AC servo tsav	8	± 0.05 hli	± 170	+120-85	+83-150	± 180	± 135	± 360	200	200	200	400	356	600	14	12	7	1490 ib	185
SDCX-RB08A3-1700		6	AC servo tsav	8	± 0.05 hli	± 170	+120-85	+83-150	± 180	± 135	± 360	180	180	180	400	356	600	14	12	7	1700	187
SDCX-RB08A3-1840		6	AC servo tsav	6	± 0.05 hli	± 170	+120-85	+83-150	± 180	± 135	± 360	160	160	160	400	356	600	14	12	7	1840	180
SDCX-RB 10		6	AC servo tsav	10	± 0.05 hli	± 170	+150-85	+85-170	± 360	± 120	± 360	200	160	200	360	360	600	43.2 ib	43.2 ib	25.4 ib	1550	240

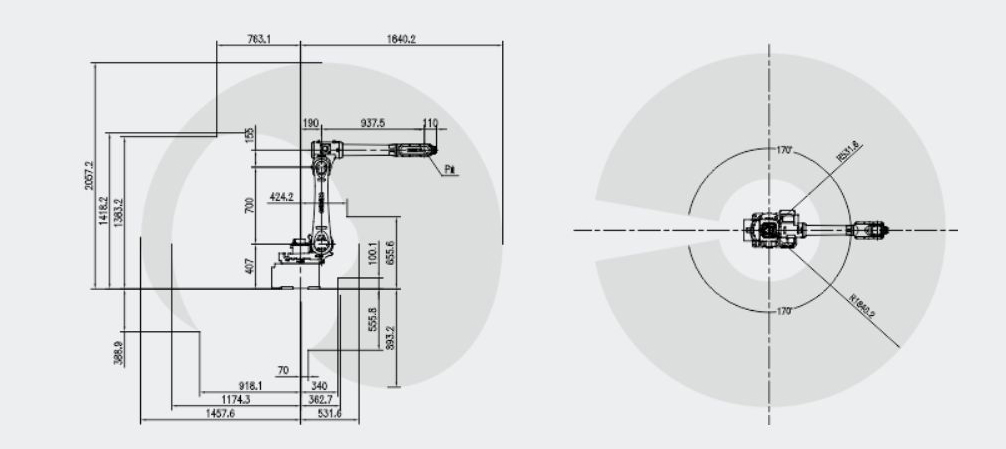

SDCX-RB20 Series	SDCX-RB06-2060	6	AC servo tsav	6	± 0.05 hli	± 170	+145-100	+75-165	± 180	± 135	± 360	165	165	170	300	356	600	40	12	7	2060	285

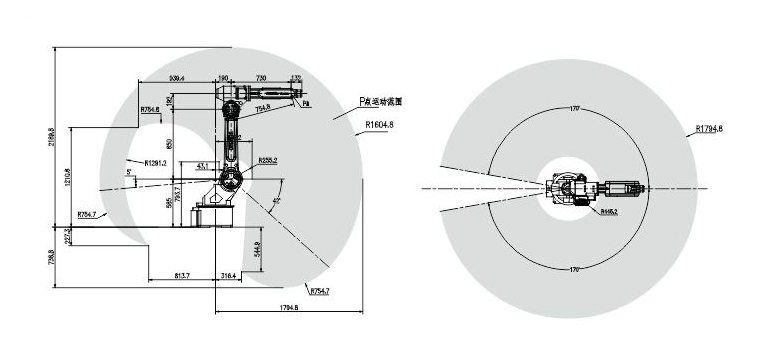

	SDCX-RB15L	6	AC servo tsav	15	± 0.05 hli	± 170	+145-100	+75-165	± 180	± 133	± 360	165	165	170	300	198	394 ib	40	50	22	1794 ib	300
	SDCX-RB 20	6	AC servo tsav	20	± 0.05 hli	± 170	+132-95	+73–163	± 180	± 133	± 360	165	165	170	300	198	394 ib	40	50	22	1595 ib	290
SDCX-RB50		6	AC servo tsav	50	± 0.05 hli	± 178	+130-90	+75-200	± 360	± 115	± 360	171	171	171	215	251	365	196	196	127	Xyoo 1956	600

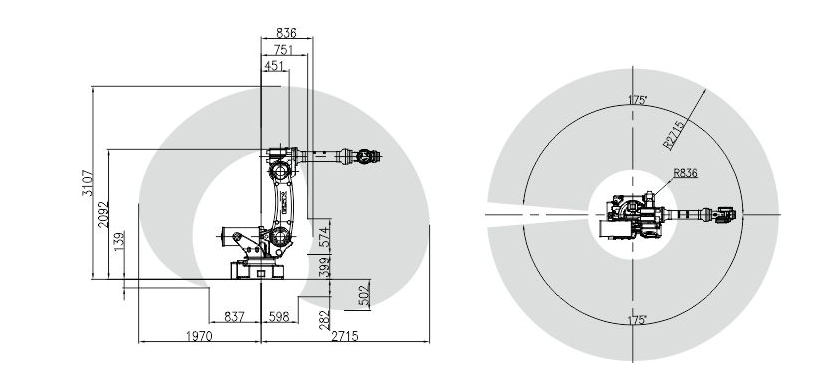

SDCX-RB130		6	AC servo tsav	130	± 0.20	± 175	+75-60	+80-185	± 360	± 115	± 360	100	94	104	165	174	238	951 ib	951 ib	490 ib	2715 ib	1420

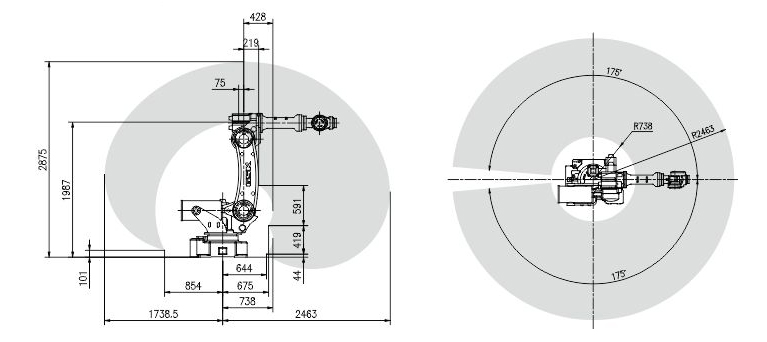

SDCX-RB165		6	AC servo tsav	165	± 0.20	± 175	+75-60	+80-185	± 360	± 115	± 360	100	94	104	152	160	220	951 ib	951 ib	490 ib	ib 2463	1400
SDCX-RB210		6	AC servo tsav	210	± 0.20	± 175	+75-60	+80-185	± 360	± 115	± 360	100	94	104	144	118	200	1274 ib	1274 ib	686 ib	ib 2463	1430 ib
SDCX-RB300		6	AC servo tsav	300	± 0.20	± 175	± 55	+116-85	± 360	± 115	± 360	85	95	95	120	120	180	1274 ib	1274 ib	686 ib	2508 ib	1500

Tsis txhob sib cuag nrog cov hluav taws kub, tawg thiab corrosive gases thiab kua;Ua kom tsis txhob txaws nrog dej, roj thiab hmoov av;Khaws kom deb ntawm qhov chaw hluav taws xob (plasma)
